Main Beam |
CAST STEEL H Beam SM 490 YA, Thickness 40LB – imported from NIPPON STEEL, JAPAN |
Kingpin |
JOST 2 inch, weld type |
Stand |
FUWA 28/80 tons, 2-speed manual |
Axles |
FUWA 13 tons, 10 bolt |
Suspension systems |
1.100 x 100 x 12mm x 10 leaf spring |
Torque arm system, Spring seat, Fasten con’t |
Solid cast steel SCW49 |

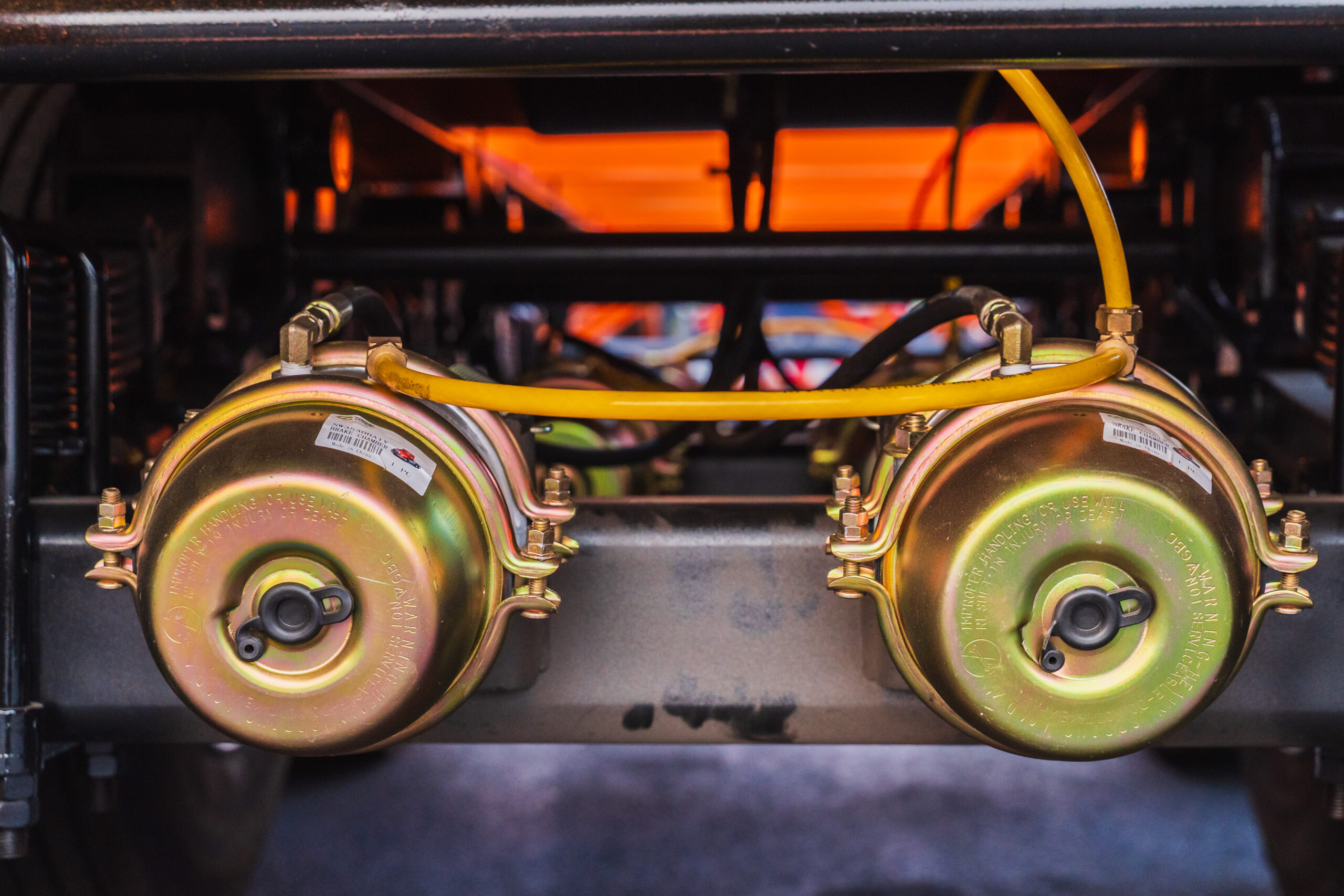

Double air brake compartment |
Seat 1 (1 floor), seat 2,3 (2 floor) |
Braking system |
Sealco relay valves, USA |

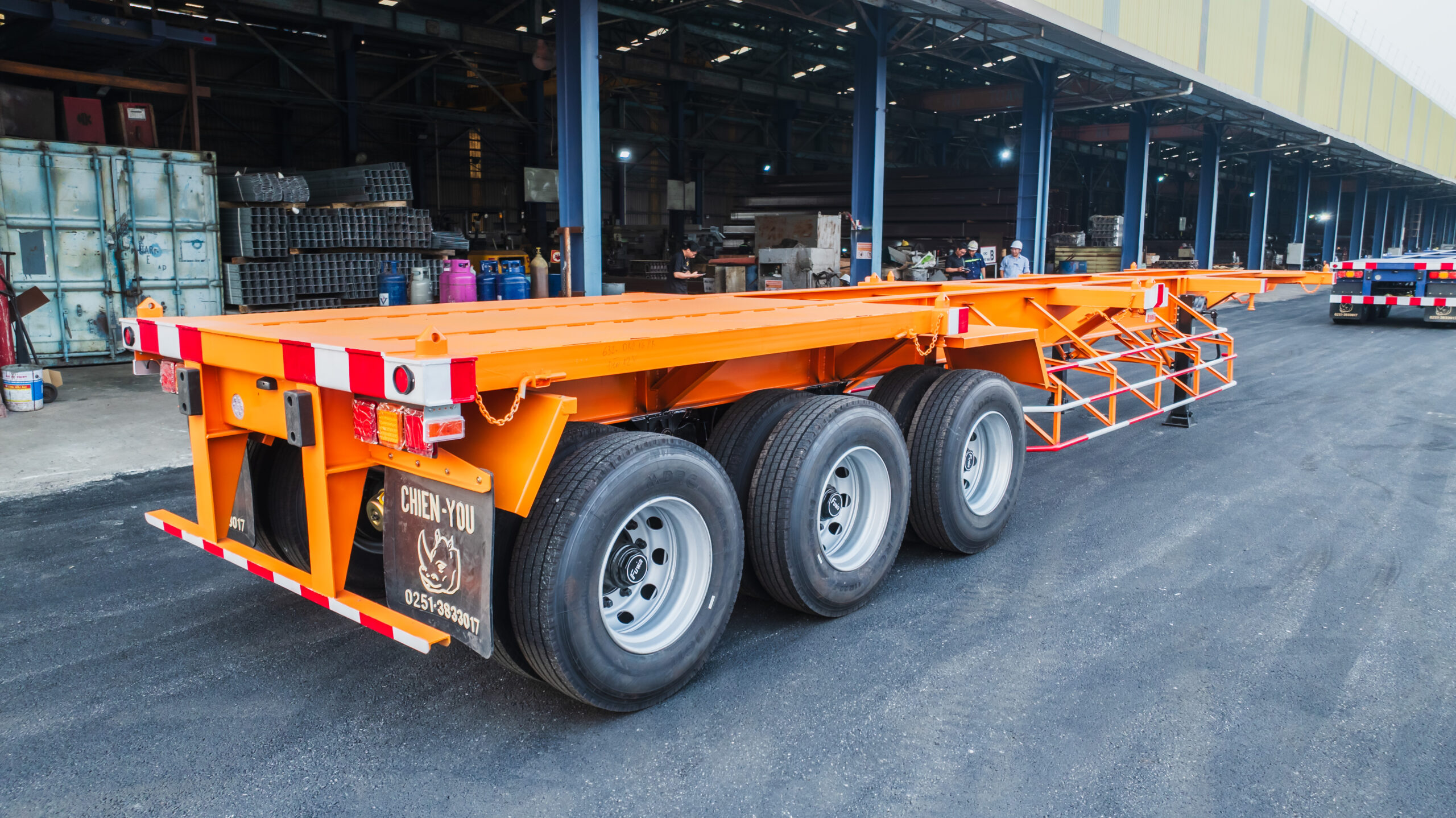

Tiries |
11.00-20 (18PR) |
Wheel |
750 x 20 x 10 hole |
Paint |
Spray blasting to SA2.5, 2 coats of primer, coating as required |
