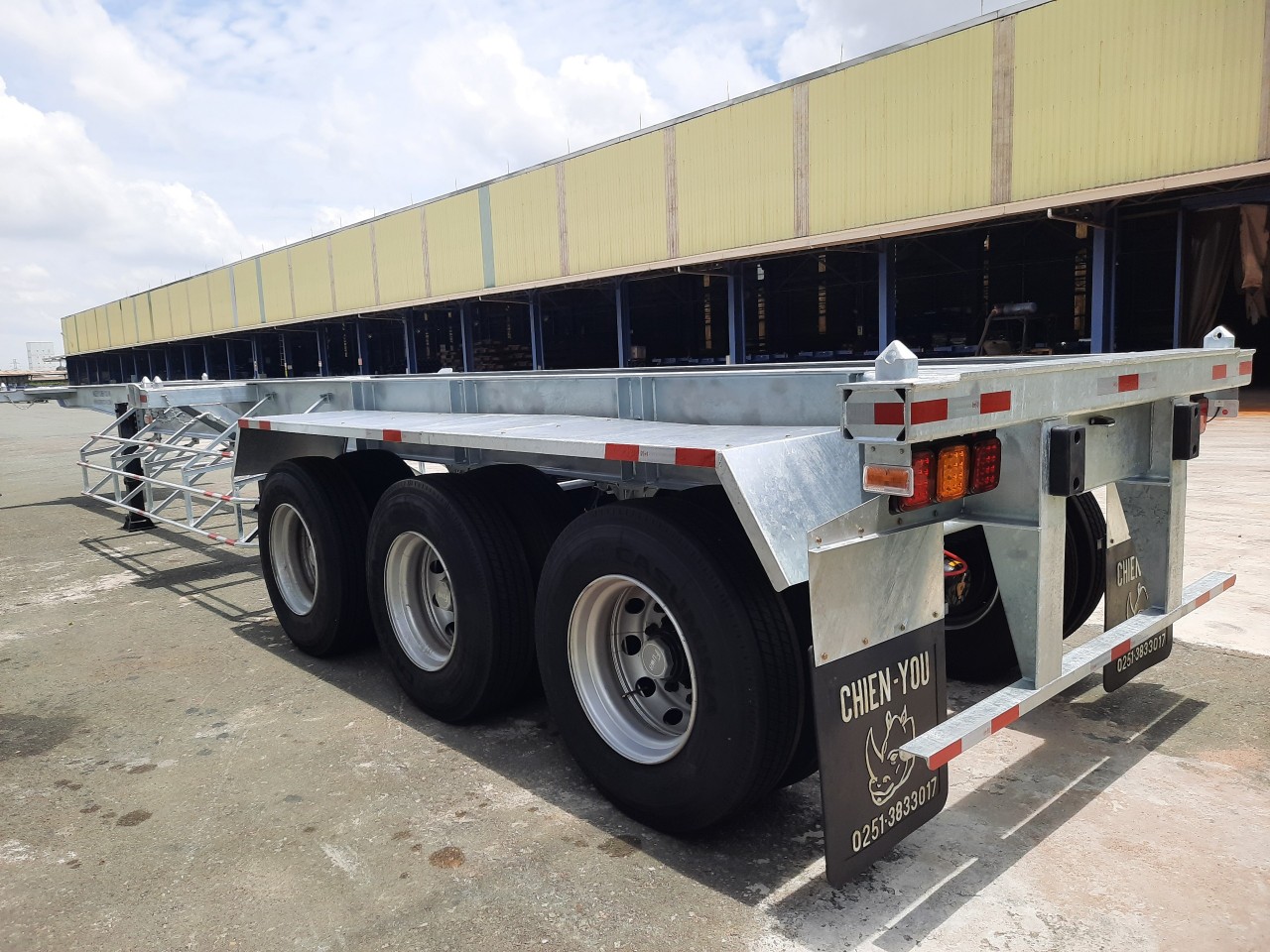

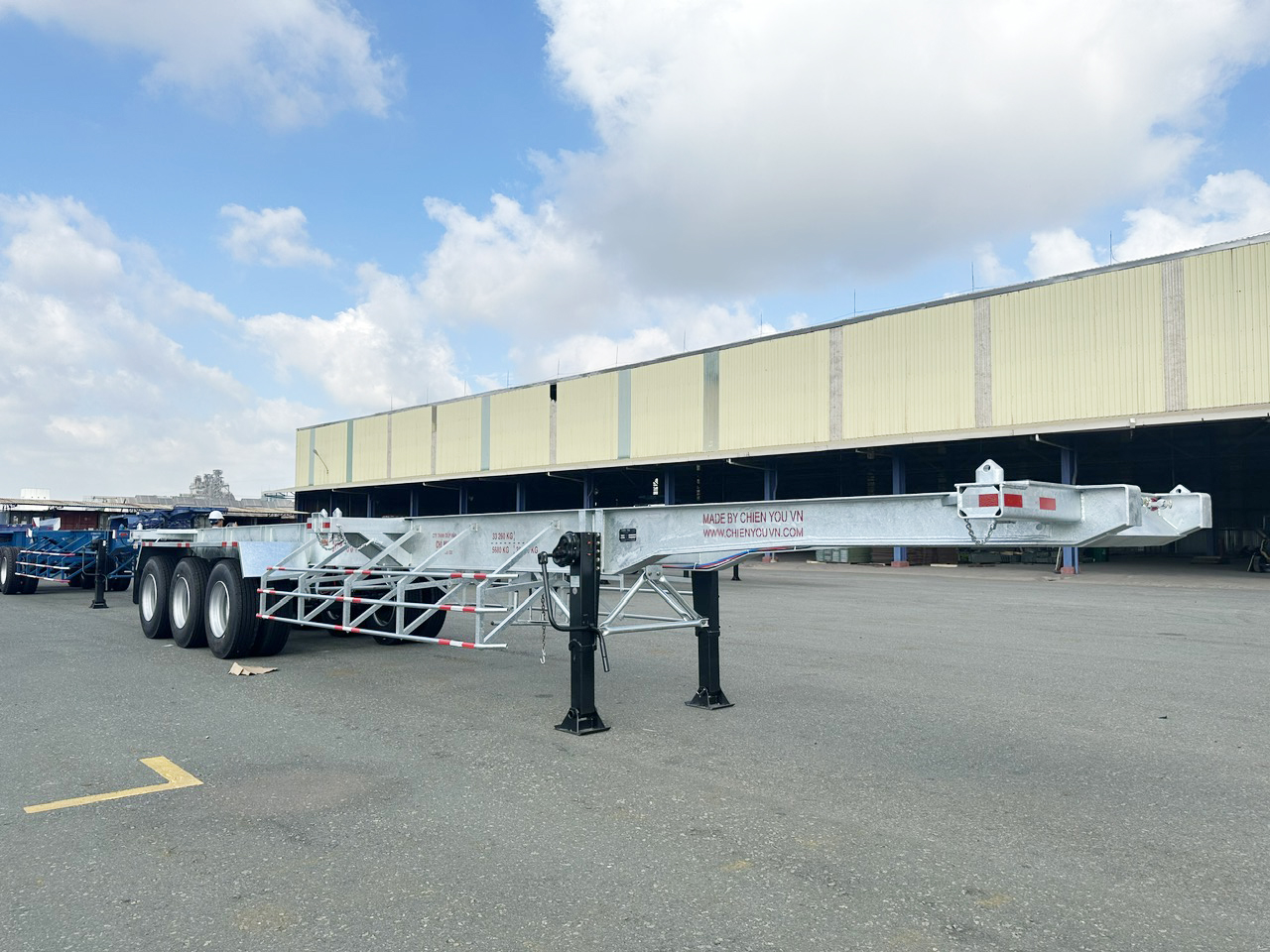

SemiTrailers – CY3SCE 35

Brand number: CHIEN YOU - SKU: CY3SCE 35
ISO No: 10002/VAQ09-02/04-00

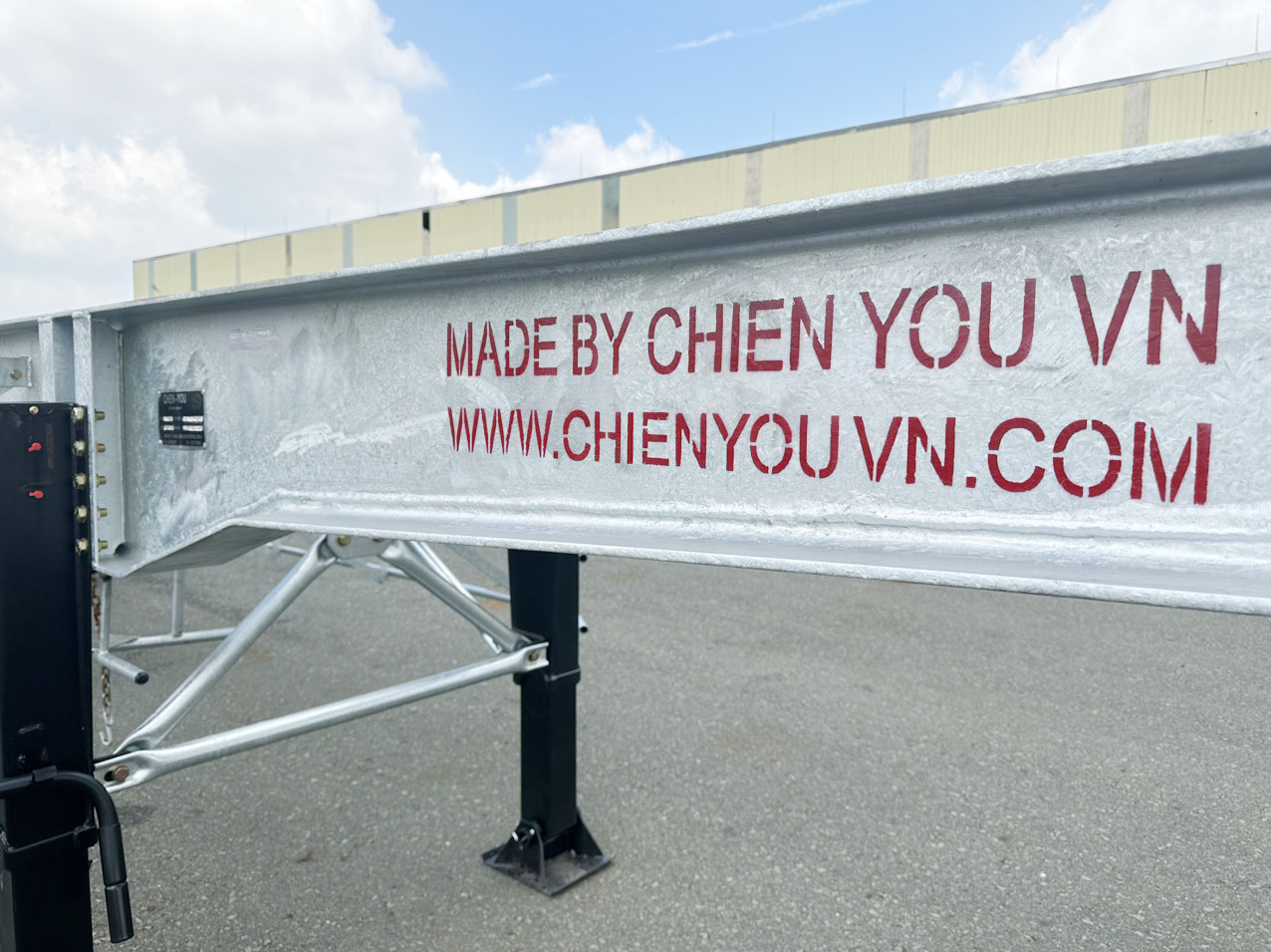

Main Beam	CAST STEEL H Beam SM 490 YA, Thickness 40LB – imported from NIPPON STEEL, JAPAN
Kingpin	JOST 2 inch, bolt type
Stand	FUWA 28/80 tons, 2-speed manual
Axles	FUWA 13 tons, 10 bolt
Suspension systems	1.100 x 100 x 12mm x 10 leaf spring
Torque arm system, Spring seat, Fasten con’t	Solid cast steel SCW49
Double air brake compartment	Seat 1, 2, 3 (2 floor)
Braking system	Sealco relay valves, USA
Tiries	11R22.5 (16PR)
Wheel	8.25 x 22.5 x 10 hole
Paint	Spray blasting to SA2.5, 2 coats of primer, coating as required
