SemiTrailers YSC 632

General information

Brand number: CHIEN YOU - SKU: YSC 632

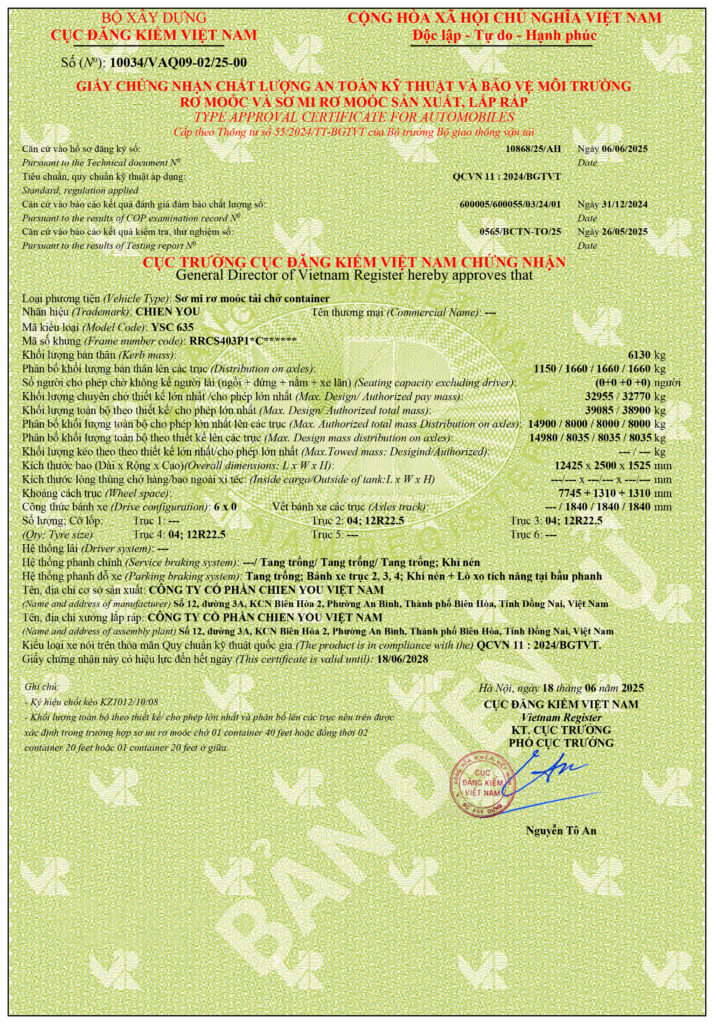

ISO No: 10009/VAQ09-02/25-00

Length x Width x Height12.425 x 2.500 x 1.510 mm
Tare weight7.745 + 1.310 + 1.310 mm
Playload/Total load32.770kg / 38.900kg
Suspension systems1.100 x 100 x 12mm x 10 leaf spring
Tires11R22.5 (16PR)
Wheel8.25 x 22.5 x 10 hole
Warranty3 years
Main Beam CAST STEEL H Beam SM 490 YA, Thickness 40LB – imported from NIPPON STEEL, JAPAN
Kingpin JOST 2 inch, bolt type
Stand FUWA 28/80 tons, 2-speed manual
Axles FUWA 13 tons, 10 bolt
Suspension systems 1.100 x 100 x 12mm x 10 leaf spring
Torque arm system, Spring seat, Fasten con’t Solid cast steel SCW49
Double air brake compartment Seat 1,2,3 (2 floor)
Braking system Sealco relay valves, USA
Tires 11R22.5 (16PR)
Wheel 8.25 x 22.5 x 10 hole
Paint Spray blasting to SA2.5, 2 coats of primer, coating as required
